DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor

DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor

Product Description Product performance Mechanical limit of max 22 turns DC motor without heating issue, motor run longer time continuously 12V or......Keywords:DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor, Roller Shutter Motor, DC Tubular Motor

Send Inquiry

Product Description

DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor
Product Description




DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor
DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor
DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor

Product
performance

                                                    Mechanical limit of max 22 turns
                                                    DC motor without heating issue, motor run longer time continuously
                                                    12V or 24V DC input, can be powered by solar panel and battery wan

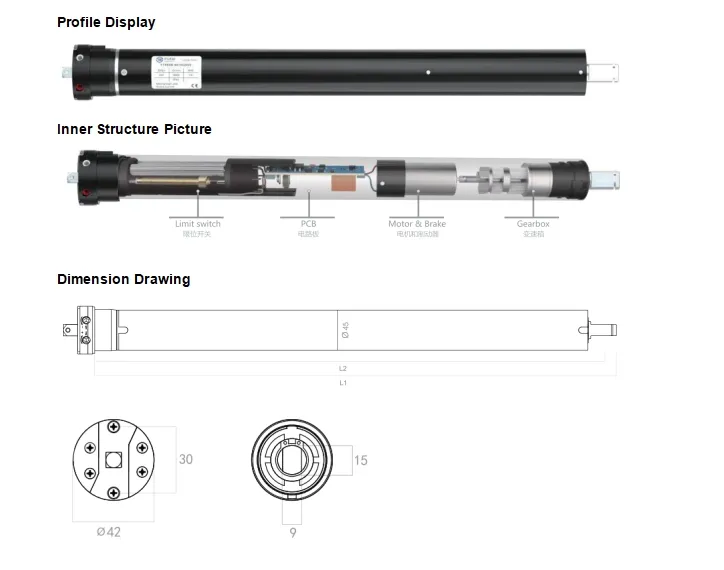

Model Rated Torque Rated Speed Tube Diameter Rated
voltage
Rated
Power
Rated
Current
Protection
Degree
Max Number
of Turns
length
L1/L2
  N.m rpm mm V W A   Turn mm
FT45DS-20/10 20 10 45 12/24 67 5.5/2.8 IP44 22 646/625
FT45DS-40/8 40 8 45 24 78 3.3 IP44 22 646/625
FT45DS-50/6 50 6 45 24 80 3.3 IP44 22 646/625
DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor
DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular MotorDC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular MotorDC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor
Packaging & Shipping




DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular MotorDC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular Motor

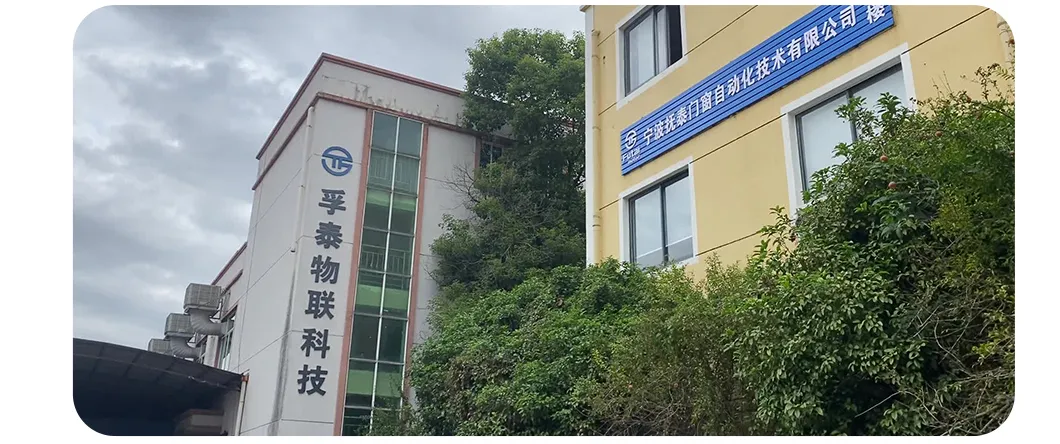

Company Profile




DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular MotorNingbo Futai Window and Door Automation Technology Co., Ltd, located in Ningbo city,Zhejiang China, Specilized in design, manufacturing, sales and service of high-end automatic motors, operators, safety contact edge and control devices for various kind of doors, and windows.

The company persists in the basic principle of science and technology,implements"sincerity ,harmony,creativity"as its  management philosophy,strictly abides by the "fine,precise,beautiful" as its manufacturing ideas.Keeping innovation,developing and manufacturing motors,  operators for window and doors,sun protection products etc.Our products are mainly used for shutter,screen,awning,roof window,garage doors,roller blinds etc.The products are of ISO9001,CE,TUV,RoHS approvced.Mainly exported to Europe,USA,middle east,south America,Australia,southeast Asia market.

In 2005, engaged in the window and door automation and sun protection industry, involved in tubular motor products
In 2010, Futai Industrial Co., Ltd. was set up in Hong Kong and engaged in the trading and sales of window and door automation products , product including tubular motors and safety edge.
In 2014, Ningbo Futai Door and Window Automation Technology Co., Ltd. was registered and founded, engaged in the research, developing, manufacturing and sales of tubular motors and safety edges, three patents were obtained. CE, ROHS Approved.
In 2018, Ningbo Futai IOT Technology Co., Ltd. was registered and added into FUTAI group, more advanced equipments were introduced, bigger factory area up to 2000 square meters, strictly and firmly engaged in the manufacturing, R&D, sales and services of tubular motors and safety edge, with three registered trademarks.
In 2019, more modern manufacturing machine and testing tools, such as extrusion machine, motor testing units, life testing units, silent room, etc. are introduced and used. Radio type motor RED approved according to European standard. Many New products were shown on R+T and IWCE fairs in Turkey and USA
In 2020, a new 1000m2 ne
FAQ




DC Safety Reinforced Gearbox Precise Speed Control Mechanical Roller Tubular MotorQ1: Are you manufacturer or trading company?
A: We are a manufacturer and we have our own factory.

Q2: How do you ensure your product and service quality?
A: All our processes strictly adhere to IS0-9001 procedures. We carry out spot checks on raw materials and parts before production. During the production process, we also carry out regular spot checks to ensure that quality standards are met at each production step. Every product is thoroughly inspected after production and before packaging to ensure that there are no quality problems. In this way, we can guarantee the high quality of our products and provide you with reliable products.

Q3: What is your minimum order quantity?
A: All MOQs vary, depending on the product. Please feel free to check with us for specific items

Q4: What about delivery time?
A: Different products have different estimated delivery times. Generally speaking, it takes about 2 to 5 weeks

Q5: Do you accept OEM business?
A: Sure, We have rich experience in providing OEM services and can meet various customer requirements.

Q6: What about shipping?
A: We recommend small batch by the way of air/express and bulk order by sea
